5 Litre Jerry Can Mould
Two-cavity blow mould for a five litre stackable jerry can, with Beryllium Copper at the neck and the base pinch-off.
- Cavities
- 2
- Capacity
- 5 litre
- Material
- Tooling steel
How the mould works.
Five processes. Pick the one that matches your container, or tell us the container and we will pick it for you.
Extrusion blow moulding (EBM)
Blow Moulds
Extrusion blow tooling for containers and bottles — single or multi-cavity, with Beryllium Copper placed where heat has to leave the tool fastest.
- Large containers without large tooling cost — the process suits volume shapes better than any alternative.
- The handle is moulded in, not fitted afterwards, so there is no second operation and no joint to fail.
- Wide material tolerance: the same tool runs across the polyolefin grades most packaging uses.
1 Litre Lubricant Bottle Mould
Two-cavity blow mould for a one litre lubricant bottle, shown with its cavity and backing halves.
- Cavities
- 2
- Capacity
- 1 litre
- Material
- Tooling steel
750 ml Bottle Mould
Single-cavity blow mould for a 750 ml bottle, cut in Alumec.
- Cavities
- 1
- Capacity
- 750 ml
- Material
- Alumec
6-Cavity Pharmaceutical Bottle Mould
Six-cavity bottle mould, photographed on the machine with the cavities polished.
- Cavities
- 6
- Geometry
- Matched across all cavities
Hot runner and cold runner
Injection Moulds
Hot runner or cold runner, multi-cavity, for the closures that seal your container and for technical packaging components.
- Tight, repeatable tolerances — which is what a thread and a sealing face need.
- Multi-cavity configurations on a balanced runner, so every cavity gives you the same part.
- Fine detail holds: threads, sealing beads, tamper bands and living hinges.
2-Cavity Closure Mould
Two-cavity injection mould for a threaded closure, shown with the moulded caps.
- Cavities
- 2
- Runner
- Hot runner or cold runner
4-Cavity Carry Handle Mould
Four-cavity injection mould for a moulded carry handle, with the components still on the runner.
- Cavities
- 4
- Runner
- Balanced, hot or cold
Tooling

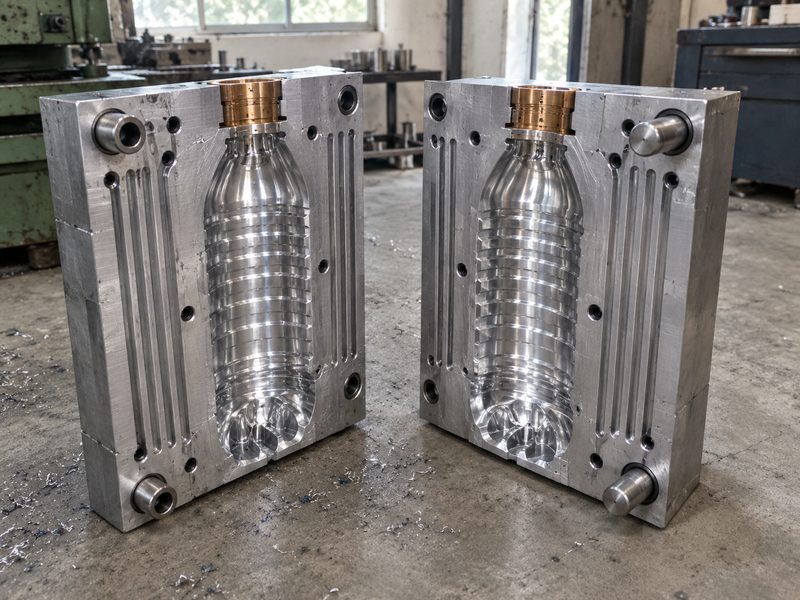

PET Moulds
PET tooling built to the neck finish and capacity you already run.
- Preform and blow cavity developed as a pair, so the wall lands where it should.
- Cut to the neck finish your filling line already uses.
- Trialled here, and the first sample checked before the tool leaves.
We build this tooling — it has not been photographed and written up for the site yet. Tell us what you need and we will quote it.
Mould quotation desk
Have a mould requirement?
Send the drawing, the specification or a photograph of the container. We will review it and come back with a quotation and a dated schedule.
